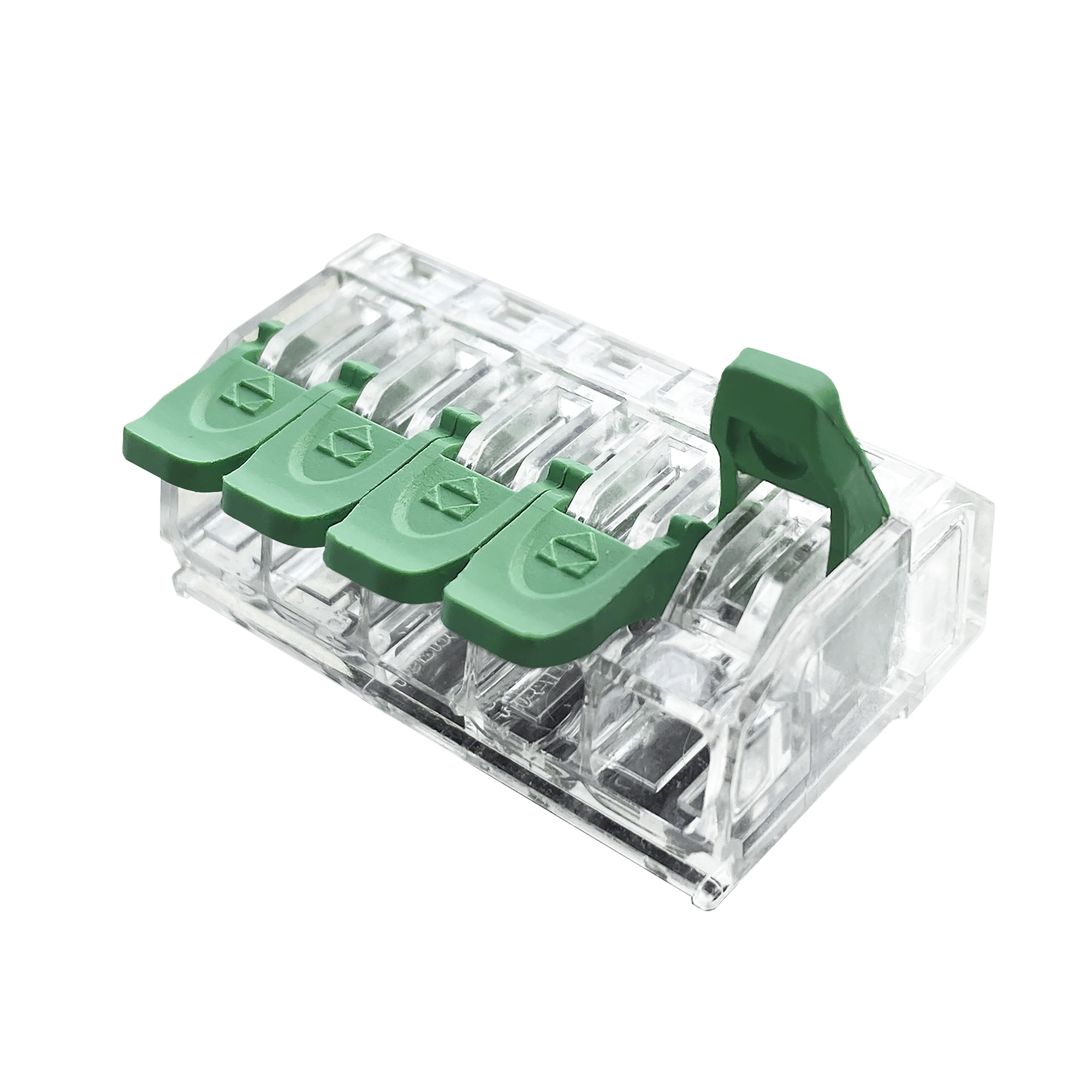

Lever connector for all wire types, 5× 0.2–4 mm², green – EDO415 EDO Technic
- Installation connector with lever, five-wire, designed for all types of wires with a diameter from 0.2 mm to 4 mm. It enables quick and safe connection of wires in electrical installations. Green EDO415 EDO Technic.
EDO Technic installation connectors are easy to use and safe solutions for connecting wires in electrical installations. Used in, among others, electrical switchboards, junction boxes, installation boxes, industrial installations, and lighting systems.
The offer includes two types of connectors: for rigid wires (without a lever) with a cross-section from 0.5 mm² to 2.5 mm² and lever connectors for all types of wires with a cross-section from 0.2 to 4mm². They are offered in various variants from 2 to 8-track.
They are characterized by compact construction, durability, speed and ease of assembly, as well as compliance with the VDE standard.* Thanks to the transparent construction, they facilitate controlling the position of the mounted wire. They are also suitable for multiple use.
*Compliance with the VDE standard – a guarantee of the highest quality and safety standards - The product has been tested and certified by the German institute VDE (Verband der Elektrotechnik). The VDE certificate confirms that the connector meets the highest electrical, fire and mechanical safety standards.
Technical data:
- Color: Green
- Material: Copper, PC
- Number of rows: 1
- Number of wires: 5
- Wire diameter: 0.2 - 4mm²
- Rated voltage: 450V
- Rated current: 24A
- Connection method: Spring
- Operating temperature: From -40℃ to +85℃
- Length: 20 mm
- Width: 29.9 mm
- Height: 10.2 mm
Polycarbonate
